Leona® Smart RGB Eave Lighting Kit
From holidays and football nights to making a home’s exterior more lively and fun, or simply matching the color of a finish or the greenery in a garden, this DIY kit offers an easy way to install color-changing RGB lighting specifically designed for soffit applications.
This system of daisy-chainable, spotlight-like modules is the perfect solution for bringing creativity—and above all, smart pinpoint control—to residential exteriors. Since it’s DIY and includes all installation components, it’s easy to create a well-defined, illuminated roofline that makes any property stand out with a true burst of color and personality.
Great Features, Real Benefits
All-in-One Kit
LED lights, driver, and controller included
IP67
Tough on moisture, dirt, and the weather
50 ft
Spaced across 36 modules for ample coverage
Manual & Smart Operation
Control via remote or the Leona® app
Voice-Command Integration
Works with Google Home and Amazon Alexa
Integrate with Leona® Smart Home System
With quick Wi-Fi and Bluetooth pairing, our RGB eave lighting kit makes it easy to set up and control outdoor soffit lights from the Leona® Smart Home App. Group with other Leona® devices, adjust power and colors remotely, sync to music for themed parties, connect with voice assistants like Google Home and Amazon Alexa, and more!
Multi-User Access
Custom Scene Creation
Timers & Schedules
Zone & Group Control
Unique Environmental TriggersHow People Use the Leona® Smart Under Eave Lights
Designed for under-eave lighting, this RGB kit can also adapt to a wide range of exterior lighting applications. It brings vibrant, customizable illumination to residential, commercial, and hospitality properties, with easy installation, smart control, and the flexibility to create virtually any color or lighting atmosphere. From roofs and eaves to other architectural and outdoor uses, it’s ready to bring these ideas to life:

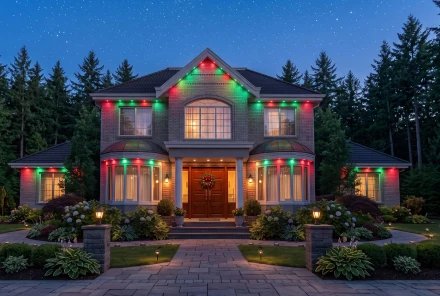

Roof Lights & Permanent Holiday Lighting
Homes and properties often express personality or embrace the festive spirit year-round. From the red and green of Christmas to a sports team’s colors or personal favorites, this kit offers a permanent, elegant alternative to buying inexpensive, disposable eave lights for occasional events. Its RGB versatility and smart technology make it easy to display the desired colors whenever needed, without changing the lights or modifying the roof.
Everyday Accent Lights & Planter Box Lighting
This is a classic, straightforward way to enhance home arrivals, family gatherings, or simply the appearance of a residential property. With easy installation and convenient control, the kit can highlight the curb appeal and architectural details that make a facade unique or add atmosphere and personality to front porches, backyards, and other exterior areas.

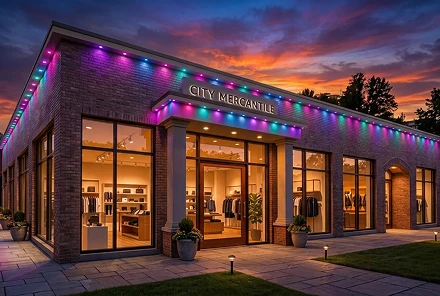

Outdoor LED Lights for Home & Commercial Entertainment
Homes, strip malls, shopping plazas, and other low-rise commercial structures often have seasonal entertainment and event-hosting needs where color can communicate a brand, theme, or personality. This kit makes it easy to recreate the colors of a national or local flag, a basketball team, or a store’s brand identity, elegantly reflected along a property's exterior walls.
Soffit Lodge and Cabin Lighting
Residential units, resorts, and hospitality properties, whether made up of finished homes, cottages, huts, or other accommodations, can benefit from centralized lighting control managed at the property or administrative level. Facade lighting can serve as a visual attraction, decorative element, wayfinding landmark, or part of an environmental theme. With its easy installation, generous length, and all-in-one design, this kit is well suited for centralized management across multiple units.
Technical Details
| Power Supply Input Voltage | 100-240V AC 50/60Hz |
|---|---|
| Power Supply Output Voltage | 24V DC |
| Power Supply IP Rating | IP20: Indoor, Dry Location |
| Control Protocol | SPI |
| Control Signal Type | Wi-Fi/Bluetooth |
| Control Operating Frequency | 2.4 GHz |
| Remote Control Distance | 32 ft (10 m) |
| Remote Batteries | 2 x AAA |
| LED Light Output | RGB Digital Lighting |
| Number of LEDs | 36 Modules |
| LED Length | 50 ft (15 m) |
| LED Wattage | 22.5W |
| LED Beam Angle | 90° |
| LED Ambient Temperature | -20° C to 40° C (-4° F to 104° F) |
| LED Operating Temperature | -20° C to 40° C (-4° F to 104° F) |
| LED IP Rating | IP67: Outdoor, Wet Location |
| Dimmable | Yes |
| Warranty | 2 Years |
| Compliance | FCC, RoHS |
Technical Documents

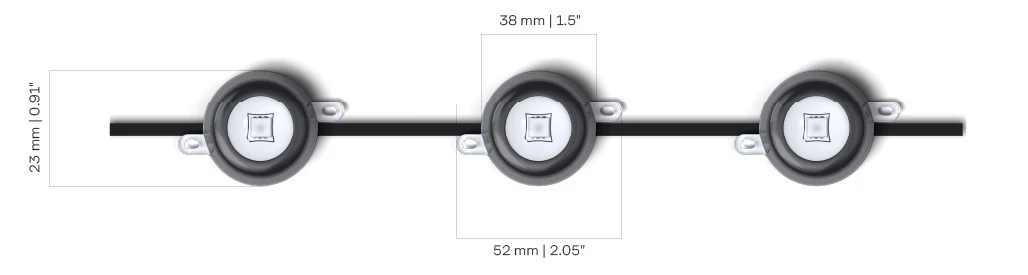

Dimensions
Certifications
Leona® Smart RGB Eave Lighting Kit FAQ:
The under-eave DIY kit includes:
- Eave Lights (36 LED modules/50 ft/15 m)
- Power Supply
- Controller
- Remote Control
- Mounting Screws & Anchors
Each LED module produces a wide 90-degree beam angle for a spotlight-like lighting effect.
You can control the eave lights using the included remote control or through the Leona® Smart Home App.
Each kit includes 36 LED modules and a 24W power supply specifically sized for those 36 modules. However, you can connect up to 40 modules in a continuous daisy-chain run.
To add those 4 extra modules, you’ll need to purchase a second kit and use 4 of its 36 modules, leaving the second kit with 32 modules. You’ll also need a larger power supply that can provide enough power for the full 40-module run.
Yes. You can pair multiple eave light runs and organize them into zones in the Leona® Smart App for convenient control.
An IP67 rating means the LED modules are dust-tight and protected against momentary immersion in water. This makes them suitable for outdoor wet locations and exposure to heavy rain, snow, and splashing water.
However, they should be kept away from corrosive materials such as saltwater, chlorine, and bromine and should not be installed within 5 feet of a swimming pool, spa, or fountain.
The LED modules are IP67-rated for outdoor and wet-location use. The power supply is IP20-rated and must be installed indoors in a dry location.
For temporary installation on smooth surfaces, you can use double-sided adhesive tape. For permanent installation on porous surfaces, use the included screws and anchors.
The kit requires a 2.4 GHz Wi-Fi network and Bluetooth for app setup. It supports voice control through Amazon Alexa and Google Assistant.
Connect all components and turn on the power. Within 30 seconds, press and hold the ‘Multi’ and ‘Random’ buttons simultaneously for at least 5 seconds.
