LED Light Sheets

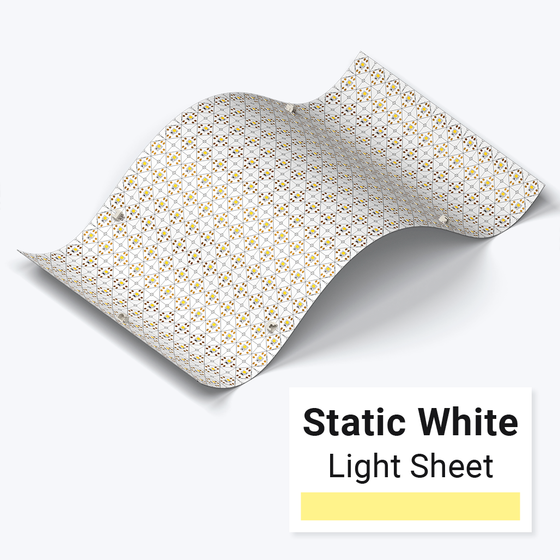

Flexfire LED Light Sheets are thin and flexible sheets that incorporate LEDs to produce bright, even illumination across its surface. They lend themselves to creative designs while ensuring low maintenance and cost-effectiveness thanks to their multiple cut points across the entire sheet. They can be cut vertically, horizontally or even diagonally to create different shapes and accommodate to your specific project needs.
Their high brightness at around 3,000 lumens per sheet and great Color Rendering Index (CRI) of 93 deliver clean and bright illumination that elevates any space, making the Flexfire LED Light Sheets an ideal solution for a wide range of installations. From illuminating architectural features and retail displays to enhancing hospitality spaces and interior design, these serve as the perfect choice for captivating lighting solutions in a wide array of projects.
The Light Sheets are available in two color temperatures, Warm White (3000K) and Bright White (5000K). They are fully dimmable and can be daisy chained up to 6 sheets in a continuous run.
Note: Each light sheet comes with one 12" power connector and one 2.5" jumper connector.
Top Features and Benefits:
-
✔ Efficiency up to 103 lm/W
-
✔ 24VDC input voltage
- ✔ Customizable
-
✔ Flexible
-
✔ Dimmable
-
✔ Lightweight design
- ✔ Indoor-rated for dry location use
Why Choose Light Sheets?
Flexfire LED Light Sheets are low profile and easy to install. They are more accommodating for larger, custom-shaped installations, ensuring the same level of brightness across the entire surface. They are great for signage and backlighting projects.
Applications and Use:
-
• Lightboxes
-
• Retail displays
-
• Signage
-
• Backlighting
Specifications:
-
✔ 29 Watts/Light sheet
-
✔ 24V DC input voltage
-
✔ CRI of 94
-
✔ Cuttable every LED 13/16" (20 mm)
-
✔ Daisy chain up to 6 light sheets in series
-
✔ Fully dimmable
-
✔ 120° beam angle
-
✔ 288 LEDs per light sheet
-
✔ 2835 SMD LEDs
-
✔ Adhesive backing for ease of installation
-
✔ Dimensions 18.9" x 9.5" (480 x 240 mm)
-
✔ 5-year warranty
-
✔ Ambient temperature: -4°F to 113°F (-20°C to 45°C)
-
✔ Operating Temperature: -4°F to 149°F (-20°C to 65°C)
| Product SKU | Color CCT | Watts/Sheet | Lumens/Sheet | Luminous Efficacy | CRI | Gamut Score | Relative Fidelity Score | TLCI |
| LST-30K | 3000K | 29W | 2940 lm | 98 lmW | 93 | 99 | 90 | 94 |
| LST-50K | 5000K | 29W | 3064 lm | 103 lm/W | 94 | 98 | 88 | 96 |
Certifications:
Compatible and Recommended Products:
Controllers and Home Automation
Compatible Dimmers and Controllers
Power Supplies
Non Dimmable Drivers
Flexfire LEDs® Plug-in Power Supply
Mean Well™ HLG and LPV Hardwired Power Supplies
Dimmable Drivers
Zurik® Universal Dimmable Driver
Zurik® EMLV Dimmable LED Driver
Lutron Hi-Lume Dimmable Driver
Extra Wire
White CMP Extra Wire 2-Wires - 20/2 - 20 AWG ETL Listed
White LED Light Sheets FAQ:
Q: What are LED light sheets and how do they differ from traditional LED strip lights?
LED strip lights consist of a long tape with LEDs spaced closely together. LED light sheets also incorporate multiple LEDs but on a wider surface instead of a strip. Both are designed to produce bright, even illumination across surfaces, however, LED light sheets are often used for larger areas. LED strip lights are most commonly used for indirect lighting and decorative purposes along surfaces and contours to create lines of light. Both LED strip lights and light sheets share the benefits of energy efficiency, prolonged lifespan, and the ability to emit different colors or color temperatures.
Q: Can I use LED light sheets for outdoor applications?
No, our LED light sheets are designed for indoor, dry location use only and they should not be installed outdoors or in wet location areas. Learn more about IP ratings.
Q: How do I install LED light sheets?
Our LED light sheets can be installed using the adhesive tape on the back. Please make sure to clean the surface where you are going to install the sheets before you use the adhesive backing. The adhesive won’t adhere to dirty, dusty or porous surfaces.
Q: Can the light sheets be cut?
Yes. Using appropriate tools such as scissors or a utility knife, you can cut the light sheets using the designated cutting marks on the light sheet PCB. These are black vertical, horizontal and even diagonal lines that represent where you can cut the light sheet to create specific shapes.
Q: Can I dim LED light sheets to adjust the brightness?
Yes, our LED light sheets are dimmable. Simply pair our light sheets with one of our compatible dimmers to adjust to your desired level of brightness.
Q: What is the product warranty?
We offer a 5-year warranty on our LED light sheets.
