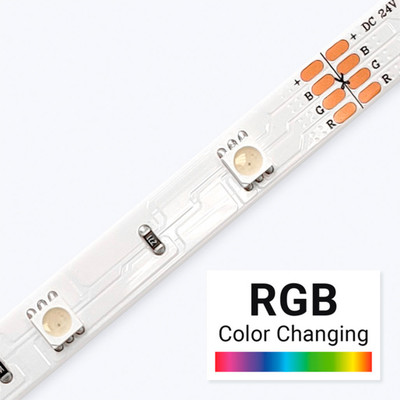

ColorBright™️ RGB 150 Color Changing LED Strip Light

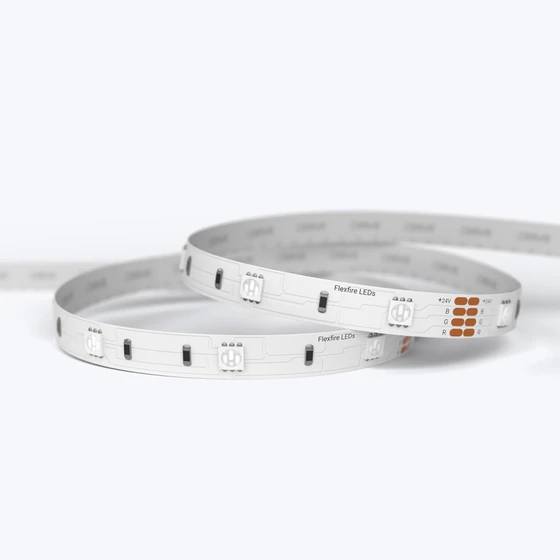

ColorBright™ Color Changing RGB 150 LED strip lights are linear color changing LED chips mounted on a flexible strip of printed circuit board (PCB) with a strong 3M adhesive backing. Using a RGB controller, you can change the color of your lights to almost anything you can imagine. Create beautiful works of art and light shows at the touch of a button.
Top Features and Benefits:
-
✔ 150 LEDs per 16 ft reel
-
✔ 15-year Warranty
-
✔ 50,000 Hour Lifespan (8 hours a day for 17 years)
-
✔ 24V input available
-
✔ Fully dimmable and color controllable
-
✔ 9 LEDs/Foot (30/Meter)
-
✔ Short LED pitch of 1 1/4"(33 mm)
-
✔ Single BIN LED selection to ensure color consistency
-
✔ Highest quality components packaged 5050 SMD LEDs
-
✔ UL Listed (cULus) E362522
-
✔ Pair these strips with a controller and access hundreds of effects (flashing, strobing, fading, and dynamic modes)
Applications and Use:
These strips are installed in a wide variety of applications including:
-
• Color controllable cove lighting
-
• Signage
-
• Backlighting
-
• Edge lighting
-
• Cabinets, shelves lighting
-
• Accent lighting locations
-
• Under cars and motorcycles
-
• Store display lighting
-
• Under cabinet lighting
-
• Above cabinet lighting
-
• Hotel lobbies
Brightness Level:
Why choose ColorBright™️ RGB 150 LED Strip Light:
Pair it with an RGB Controller:
Examples of what the RGB 150 Series can do for your space
TV Backlighting
Ceiling and Back Lighting
Toekick and Under Cabinet Lighting
Specifications:
-
✔ 2.2 Watts/ft
-
✔ 15-year warranty
-
✔ 50,000-hour lifespan (8 hours/day for 17 years)
-
✔ 3/8" (10 mm) strip width
-
✔ Fully dimmable and color controllable
-
✔ 120° Beam Angle
-
✔ 24V DC Input
-
✔ 9 LEDs/Foot (30/Meter)
-
✔ Short LED pitch of 1 1/4" (33 mm)
-
✔ Highest Brightness RGB LED Chips
-
✔ Thermally Resistant 3M VHB 4930
-
✔ Thick double layer 4oz copper PCB
-
✔ Single BIN LED selection to ensure color consistency
-
✔ Highest quality premium packaged 5050 SMD LEDs
-
✔ Environmental Temperature -4°F - 113°F (-20°C - 45°C)
-
✔ Height: 1/16" (2 mm)
-
✔ UL Listed (cULus) E362522
| Product SKU | LEDs / Foot (Meter) |
Voltage Input | Watts / Foot (Meter) |
Segment Lengths | Max Run Length in Series |
| CB-RGB150-24V | 9 LEDs/ft (30/m) |
24V | 2.2 W/ft (7.2 W/m) |
6 1/2" (165 mm) | 49' 2" (15 meters) |
Certifications:
LED Strip Light Kits
Purchase a complete kit with all the components needed:
-
Plug and play kit with handheld remote or smartphone integration
Aluminum Channels
Compatible Aluminum Mounting Channels
Controllers and Home Automation
Connectors
Power Supplies
Non Dimmable Drivers
Flexfire LEDs® Plug-in Power Supply
Mean Well™ HLG and LPV Hardwired Power Supplies
ColorBright™ RGB 150 Color Changing LED strip light FAQ
Q: What are the top 4 comparing factors to look for before purchasing LED strip lights?
1. Make sure you know the requirements for your project, then when looking at options, compare lumen output, CCT, and CRI.
2. Compare LED strip size and number of chips on the reel.
3. Understand the wattage and voltage that the LED strip light uses.
4. Make sure that the products have verifiable quality.
To read more details on these top considerations, click here.
Q : What is the importance of UL Listed lighting?
UL is an acronym for the Underwriters Laboratories. They are an independent product safety certification organization. A good summary used by UL is, "a not-for-profit organization dedicated to public safety." This means you can install these LEDs in commercial spaces, industrial applications, and in your home with peace of mind.
Q: How do I install RGB color changing LED strip lights?
Learn the basics of installing RGB LED strip lighting under counters, connecting them to the controller, mounting and controlling them, here. Consult our design team for extra assistance.
Q: How do I install more than one RGB LED strip light to a controller?
You can use one controller to control multiple runs of the RGB strip lights. This can be achieved by stripping the ends of the wires from multiple runs and connecting them together before inserting them into the RGB controller. Two important things to note here. Make sure you are not exceeding the amperage / wattage maximum of the controller when you are installing multiple runs. Also, if you are using solderless connectors, make sure that the markings on the strip are used as the guides for polarity and not just the colors of the wire.
The colors associated with the polarity markings will change depending on the side of the strip the connector is attached to. Click here for a detailed installation guide. Consult our design team for extra assistance.
Q: Which Power Supply do I need for my (x) feet of LEDs?
The length of LED strip lights of your project will determine the size of the power supply you need. View our power supply chart to find the exact LED power supply you need.
-Desktop style plug-in power supplies
- Hardwired LED power supplies
Q: What is a 5050 SMD LED chip?
5050 SMD (Surface Mounted Diode) represents the size of the LED chips on the strip. A 5050 SMD chip measures at 5.0mm x 5.0mm. Click here for more information on LED chip sizes.
Q: Can RGB chips be controlled independently?
You need to use individually-addressable LED chips which are normally found on digital strips. Those are different than the chips on this product. Please contact the design team for more assistance.
Q: Can I hardwire RGB strips into a wall dimmer?
The RGB strips are not compatible with conventional wall dimmers that are designed to be hard wired. Please contact the design team for design solutions.
Q: Can I cut the strips myself?
Yes, LED trips are made to be cut to your desired length. Using sharp scissors, you can cut the strip every few inches (on a line that's marked after every third LED).
Q: What is the maximum run length of RGB 150 strip lights?
Before noticing any unwanted color variations or dimming at the end of your run of lights, it is recommended that you run no more than 49' in series.
Q: I am using RGB lighting and want to control them via a DMX controller – are your lights fully controllable?
Yes. Our lights work perfectly well with DMX systems. However, our strips are not individually-addressable. For example, if one chip displays red then all of the other chips will also show red. If you require chasing or independent-control then you will need to use a digital strip.
Q: What is the difference between RGB 150 and RGB 300?
The 150 or 300 directly correspond to the number of LED chips per 16ft reel. Twice the amount of light is emitted, thus double the amount of power is also required.
Q: Is there an outdoor option?
Yes, we do carry a water resistant Outdoor ColorBright™ RGB 150 LED strip light.
Q: Which power source do you need for my project?
LED Strip Light Power Usage Calculator
More Information on LED Strip Lights:
Top 4 "need to know facts" about LED strip lights before purchasing - With a wide range of quality and price points in the market, it is important to educate yourself before buying.
90% of our customers found this page useful in selecting their LED strips
LED Strip Lighting Examples - The versatility of LED strips can be seen in the variety of projects our clients have completed. Looking for ideas? LED lighting example projects
Need assistance with your project or purchase? Our design specialists are ready to help.
Contact Us
Downloads:
Installation Guide
General LED Strip Installation Guide
Specification Sheet
RGB 150 Color Changing Strip Light Data Sheet
Connection Guide
Solderless Connectors Installation Guide
Photometric Reports
Goniophotometer Reports
IES / LDT Files
Red IES / LDT | Green IES / LDT | Blue IES / LDT | RGB IES / LDT
