RGB + Dynamic Tunable White - 5-in-1 Strip Light
Our ColorBright™ RGB + Dynamic Tunable White LED Strip Light combines two types of powerful strips into one with the help of a 5-in-1 5050 LED chip that creates bright and beautiful colors thanks to its RGB color-changing feature, while also offering a wide range of dynamic tunable white lighting that can be tuned from 2400K all the way up to 6500K.
This product is for those who love to control every aspect of their lives, starting with their lights. The best part of it? Everything is combined in a single strip.
These lights create any color you can imagine, and allow you to adjust brightness, color tone and light modes with an RGB + Dynamic Tunable White controller. With 18 LED chips per foot, it also creates a smooth and vibrant line of light.
Top Features and Benefits:
-
✔ Millions of vivid colors + any shade of white
-
✔ 7-year Warranty
-
✔ 50,000 Hour Lifespan (8 hours a day for 17 years)
-
✔ 5-in-1 chip (RGB + Tunable White)
-
✔ DMX, RF, or home automation controlled
-
✔ CCT range 2400K - 6500K
-
✔ Fully dimmable and controllable
-
✔ Single BIN LED selection to ensure color consistency
-
✔ UL Listed (cULus) E362522
-
✔ Pair these strips with a controller and access hundreds of effects (flashing, strobing, fading, dynamic modes)
For residential projects pair these lights with the Leona™ Smart Home Controller and you will be on your way to taking control of your linear lighting in a way you never have before! Control your lights in the palm of your hand by using the Leona’s phone app that allows you to separately control colors and white color temperatures all in one app, or use your Amazon Alexa or Google Home to adjust your lights with your voice. Or for commercial and larger projects check out our RGB+Dynamic DMX Lite Controller and 5 Channel DMX Decoders.
Applications and Use:
These strips are installed in a wide variety of applications including:
-
• Color controllable cove lighting
-
• Backlighting
-
• Under counter lighting
-
• Cabinets, shelves lighting
-
• Accent lighting locations
-
• Under cabinet lighting
-
• Above cabinet lighting
-
• Hotel lobbies and commercial lighting
Why choose ColorBright™ RGB + Dynamic Tunable White Series?
If you are looking for fun, vibrant, and dynamic lighting that gives you complete freedom to choose any color you want, then this strip is for you. This LED strip light offers bright colors, millions of possibilities, intricate customization, easy installations, and more. This is a next-generation LED strip that combines the versatility of our RGB Color-changing strips with the refined quality of our Dynamic Tunable Accent LED strip lights. This means that you no longer have to worry about finding the exact color to match the mood in a room, or worry about trying to match existing lighting or color temperature (CCT) in a room.

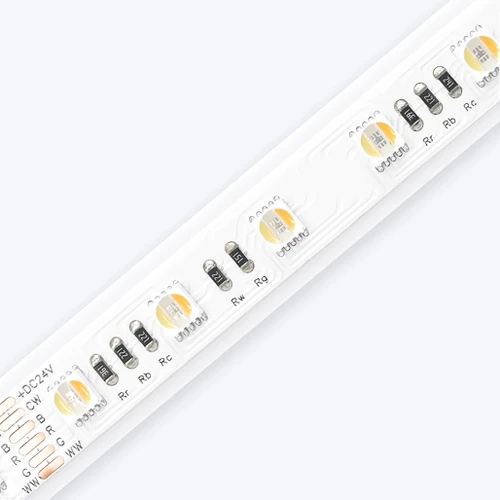

We also improved the PCB thickness of the strip for better heat dissipation, added a cutting-edge 5-in-1 LED chip for better diffusion, and increased the CRI on the white part of the chips for better color rendering. The ColorBright™ RGB + Dynamic Tunable White LED Strip Lights can be easily controlled with a Leona™ Smart Home Controller for RGB + Dynamic Tunable White LED strips or a RGB + DYN DMX Lite Controller .
Examples of what the ColorBright RGB + Tunable White Series can do for your space
Hospitality Lighting
Mood Lighting
Under Bed and Backlighting
Ceiling Lighting
Specifications:
-
✔ 5.5 Watts/ft
-
✔ CCT range 2400K - 6500K
-
✔ CRI of 90+ for the white parts of the chips
-
✔ Max run length with all channels on: 16 ft
-
✔ Max run length with 3 channels on: 23 ft
-
✔ Efficacy of 76 lm/W
-
✔ CRI of 90+ for the white parts of the chips
-
✔ 7-year warranty
-
✔ 50,000-hour lifespan (8 hours/day for 17 years)
-
✔ 1/2" (12 mm) strip width
-
✔ Fully dimmable and color controllable
-
✔ 120° Beam Angle
-
✔ 24V DC Input
-
✔ 18 LEDs/Foot (60/Meter)
-
✔ Short LED pitch of 3/4" (17 mm)
-
✔ 5-in-1 LED chips
-
✔ Thermally Resistant 3M VHB 4930
-
✔ Thick double layer 3oz copper PCB
-
✔ Single BIN LED selection to ensure color consistency
-
✔ Highest quality premium packaged 5050 SMD LEDs
-
✔ Environmental Temperature -4°F - 113°F (-20°C - 45°C)
-
✔ Height: 1/16" (2 mm)
-
✔ UL Listed (cULus) E362522
| Product SKU | Color - CCT | Watts / Foot (Meter) |
Lumens / Foot (Meter) |
Luminous Efficacy (Lumens / Watt) |
CRI | Gamut Score Rg |
Relative Fidality Rf |
| CB-RGBDYN-2465K | 2400K | 1.1 W/ft (3.6 W/m) |
113 lm/ft (371 lm/m) |
67.78 | 94 | 100 | 93 |
| 6500K | 1.1 W/ft (3.6 W/m) |
109 lm/ft (357 lm/m) |
76.87 | 95 | 97 | 89 | |
| All channels on | 5.5 W/ft (18 W/m) |
260 lm/ft (853 lm/m) |
48.82 | 64 | 109 | 75 |
Certifications:
Compatible Products
LED Strip Light Kits
Purchase a complete kit with all the components needed:
-
Plug and play kit with handheld remote or smartphone integration
Aluminum Channels
Compatible Aluminum Mounting Channels
Controllers and Home Automation
Leona Smart Home Controller
RGB + DYN DMX Lite Controller
DMX 5-Channel Decoder
Connectors
Power Supplies
Flexfire LEDs® Plug-in Power Supply
Mean Well™ HLG and LPV Hardwired Power Supplies
ColorBright™ RGB + Dynamic Tunable White LED strip light FAQ:
Q: How do I install RGB + Dynamic Tunable White LED strip lights ?
These LED strip lights need to use a RGB+DYN controller for them to work. Once you have selected the length of lights you want, you will have to select a power supply by calculating the wattage the length of strip will be using. When selecting a remote, make sure that you are not going beyond the wattage maximum for that particular controller. Our ColorBright™ RGB + Dynamic Tunable White LED Strip Lights have 6 wires that need to go into their appropriate places within the RGB+DYN controller. Pay attention to the indicator markings on the strip. Consult our design team for extra assistance.
Q: What is the maximum run length of RGB + Dynamic Tunable White strip lights?
The maximum run length for this strip varies according to the amount of channels being used simultaneously. If you have all five channels on, the run length will be 16’4 feet (5 meters), but if not all channels are being used at once, the run length will be 23 feet (7 meters). Please contact our design team for help with larger projects.
Q: What's special about this product?
Our ColorBright™ RGB + Dynamic Tunable White LED Strip Lights incorporate the latest color-changing technology with a 5-in-1 chip that combines an RGB color-changing chip with two dynamic tunable white sections. The fact that this LED strip combines all types of LED chips into one, allows it to pack more chips per foot, creating a uniform line of light that produces RGB colors plus high-quality white light in temperatures ranging from 2400K to 6500K. On top of everything, these strips feature an 90+ CRI rating for rich, accurate color rendering.
Q: What is the product warranty?
Because of our unyielding confidence in the quality of our product, we offer a 7-year warranty on our ColorBright™ RGB + Dynamic Tunable White LED Strip lights. For more info, please read our warranty policy.
Q: What is correlated color temperature? (CCT)
The color of light can be quantified by referring to its color temperature. White light is measured in Kelvins (K). Most white lights fall in a spectrum between 1800K and 6200K. When dropping below 3000K, the light becomes noticeably warmer. On the other end of the spectrum, the lights become cooler and emit a blue-ish tint as they rise above 6500K.
Q: Which Power Supply do I need for my (x) feet of LEDs?
The length of LED strip lights of your project will determine the size of the power supply you need. View our Power Supply chart to find the exact LED power supply you need.
Q: What is CRI and why should I care?
Color rendering index (CRI) measures how colors are correctly rendered under a light source in comparison to natural sunlight. The index is measured on a 0-100 scale with 100 being a perfect rating of color accuracy, meaning the colors appear as they naturally would under unadulterated daylight. High CRI lighting is sought out everywhere, but is particularly valuable in. The bottom line: the higher the CRI, the higher quality is the light source.
95 - 100 → Phenomenal color rendering. Colors appear as they should, subtle tones pop out and are accented, skin tones look beautiful, art comes alive, backsplashes and paint shows it's true beautiful full saturation. You have to see it to believe it!
90 - 95 → Great color rendering! Almost all colors 'pop' and are easily distinguishable. Noticeably great lighting starts at a CRI of 90.
80 - 90 → Good color rendering, where most colors are rendered well. You may not see items as fully saturated as you would like, but most people will not notice.
60 - 75 → Poor color rendering. Items and colors may look desaturated, drab, and at times unidentifiable (cannot see the difference between black and navy colored socks).
Q: What are lumens (lm)?
This is a quantifiable amount of light produced by an LED strip or other light-producing product, as seen by the human eye. In other words, this is one way we can measure how much light is produced. When comparing LED strip lights, you want to compare the lumen output as well as the CRI, watts/foot, warranty, and bin selection.
Q: Can I cut the strips myself?
Yes, our LED strip lights are made to be cut to your desired length. Using sharp scissors, you can cut this strip every 4". You’ll see the cut marks printed on the surface of the strip.
Q: What is the importance of UL Listed?
The Underwriters Laboratories (UL) are an independent, not-for-profit organization that focuses on evaluating products for safety certification. This means you can use and install these LEDs in commercial spaces, industrial applications and in your home knowing that these are safe products.
