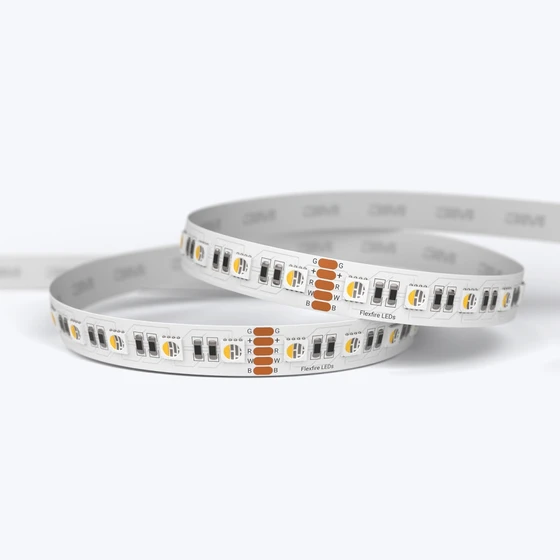

ColorBright™️ RGBW Quad Chip LED Strip Light
The ColorBright™ RGBW Quad Chip LED strip light is an ingenious product that has combined two powerful strips into one. Now featuring a 4-in-1 LED chip that produces both RGB color changing and warm white lighting. This new and improved strip is brighter, offers improved color rendering when using the white channel, and creates a more diffused appearance when paired with a diffuser compared to our previous RGBW strip. This product is perfect for those who love to control every aspect of their lighting. It is fully dimmable and can be set to many different modes depending on the controller they are paired with. Create multiple color combinations, or simply set your lights to a beautiful warm white.
Top Features and Benefits:
-
✔ 24V DC input voltage
-
✔ 4-in-1 chip combining color changing and 3000K white lighting
-
✔ 24 LEDs/ft (72 LEDs/m) for seamless lines of light
-
✔ Short LED pitch of 5/16" (8.5 mm)
-
✔ 120 degrees beam angle
-
✔ Fully dimmable and color controllable
-
✔ Highest quality components packaged 5050 SMD LEDs
-
✔ UL Listed (cULus) E362522
-
✔ Single BIN LED selection to ensure color consistency
-
✔ 7-Year Warranty
-
✔ Pair these strips with a controller and access hundreds of effects (flashing, strobing, fading, dynamic modes)
Applications and Use:
These strips are installed in a wide variety of applications including:
-
• Color controllable cove lighting
-
• Signage
-
• Backlighting
-
• Edge lighting
-
• Cabinets, shelves lighting
-
• Accent lighting locations
-
• Store display lighting
-
• Under cabinet lighting
-
• Above cabinet lighting
-
• Hotel lobbies
Why choose ColorBright™ RGBW LED Strip Light:
Choose the ColorBright™ RGBW Quad Chip LED Strip Light if you are looking for the possibility of selecting color-changing lights or warm white lighting in a single LED strip light. No need to purchase two different LED strip lights or choose between color changing lights or white lighting only. You can choose to have the best of both worlds with the help of a controller to select the color combination of your preference. Adjust the brightness, the speed of the dynamic modes, or other controller functions to achieve exactly what you are looking for in your lighting project.
Pair it with an RGB Controller:
Examples of what the RGBW Series can do for your space
Dining Room Lighting
Ceiling and Back Lighting
Toekick and Under Cabinet Lighting

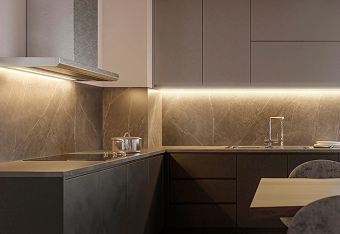

Kitchen Lighting
Specifications:
-
✔ 5.8 Watts/ft
-
✔ 7-year warranty
-
✔ 50,000-hour lifespan (8 hours/day for 17 years)
-
✔ Width: 1/2" (12 mm) strip
-
✔ Height: 1/16" (2 mm)
-
✔ Can be cut every 3"
-
✔ Max length in series 32 ft (10 m)
-
✔ Fully dimmable and color controllable
-
✔ 120° Beam Angle
-
✔ 24V DC Input
-
✔ White LEDs have a high CRI of 93+
-
✔ 24 LEDs/Foot (72/Meter)
-
✔ Short LED pitch of 5/16" (8.5 mm)
-
✔ Thermally Resistant 3M VHB 4930
-
✔ Thick double layer 4oz copper PCB
-
✔ Single BIN LED selection to ensure color consistency
-
✔ Highest quality premium packaged 5050 SMD LEDs
-
✔ Environmental Temperature -4°F - 113°F (-20°C - 45°C)
-
✔ UL Listed (cULus) E362522
| Product SKU | Color CCT |
Watts / Foot (Meter) |
Lumens / Foot (White only) |
CRI (White Only) |
Gamut Score (White Only) |
Fidelity Score (White Only) |
| CB-RGBW | All Channels | 5.8 W/ft (19 W/m) |
293 lm/ft (961 lm/m) |
56 | 107 | 69 |
| 3000K | 1.4 W/ft (4.6 W/m) |
121 lm/ft (397 lm/m) |
93 | 100 | 92 |
Certifications:
LED Strip Light Kits
Purchase a complete kit with all the components needed:
-
Plug and play kit with handheld remote or smartphone integration
Aluminum Channels
Compatible Aluminum Mounting Channels
Controllers and Home Automation
Connectors
Extra Wire
RGBW 5-Strand Wire
RGBW 5-Strand 16 AWG Wire
RGBW 5-Strand 22 AWG Wire
Power Supplies
Non Dimmable Drivers
Flexfire LEDs® Plug-in Power Supply
Mean Well™ HLG and LPV Hardwired Power Supplies
Dimmable Drivers
ColorBright™ RGBW Color Changing LED strip light FAQ
Q: What is the product warranty?
We’re so happy with the quality of our product, we offer a 7-year warranty on ColorBright™ RGBW Quad Chip LED Strip Light.
Q: What is the lifespan of your strip lights?
Our lights have been rigorously tested and have an expected lifespan of 50,000 hours before dropping to 70% luminosity. This means that if you were to use your lights 12 hours a day, every day, the lights would be expected to last longer than 10 years. Even after that time has elapsed, the lights will maintain a brightness of 70%. Higher-output strips require a heat sink to reach the expected lifespan and beyond.
Q: What is color temperature?
The color of light can be quantified by referring to its color temperature. White light is measured in Kelvins (K). Most white lights fall in a spectrum between 1800K and 6200K. When dropping below 3000K, the light is noticeably warmer or "softer". On the other end of the spectrum, the lights have a blue-ish tint and cooler tone when passing 6500K. Our ColorBright™ RGBW Quad Chip LED Strip Light combines RGB color changing lighting with 3000K warm white lighting.
Q: What are lumens (lm)?
This is a quantifiable amount of light produced by an LED strip or other light-producing product. This is one way we can measure light output. Our ColorBright™ RGBW Quad Chip LED Strip Light provides up to 293 lumens per foot which works great for accent lighting.
Q: How do I install RGBW color changing LED strip lights?
RGBW strip lights need to use a RGBW controller for them to work. Once you have selected the length of lights you want, you will have to select a power supply by calculating the wattage the length of strip will be using. When selecting a remote, make sure that you are not going beyond the wattage maximum for that particular controller. For longer run lengths, you are going to want to use an amplifier, or another controller. The strips have 5 wires that need to go into their appropriate places within the RGBW controller. Pay attention to the indicator markings on the strip. Learn the basics of installing RGB LED strip lighting under counters, connecting them to the controller, mounting and controlling them, here. Consult our design team for extra assistance.
Q: What is the maximum run length of RGBW strip lights?
The maximum run length for this strip is 32’ 10” (2 reels). Please contact our design team for help with larger projects.
Q: What is the importance of UL Listed lighting?
UL is an acronym for the Underwriters Laboratories. They are an independent product safety certification organization. A good summary used by UL is, "a not-for-profit organization dedicated to public safety." This means you can install these LEDs in commercial spaces, industrial applications, and in your home with peace of mind.
Q: Which Power Supply do I need for my (x) feet of LEDs?
The length of LED strip lights of your project will determine the size of the power supply you need. View our power supply chart to find the exact LED power supply you need. You will need a 24VDC power supply as our RGBW strip light works with 24VDC input voltage.
- Desktop style plug-in power supplies
- Hardwired LED power supplies
- Zurik™ Universal Dimmable power supply
Q: What is a 5050 SMD LED chip?
5050 SMD (Surface Mounted Diode) represents the size of the LED chips on the strip. A 5050 SMD chip measures 5.0mm x 5.0mm. Click here for more information on LED chip sizes.
Q: Can RGB chips be controlled independently?
You need to use individually-addressable LED chips which are normally found on digital strips. If you are looking for that kind of strip the RGB Digital Pixel LED Strip is what you need.
Q: Can I hard wire RGBW strips into a wall dimmer?
The RGBW strips are not compatible with conventional wall dimmers that are designed to be hard wired. Please contact the design team for design solutions.
Q: Is there an outdoor option?
Yes, we do carry a water resistant Outdoor ColorBright™ RGBW LED strip light.
