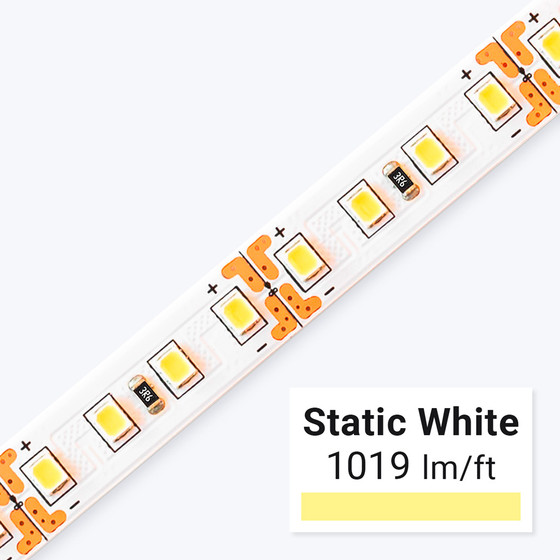

UltraBright™ Industrial Series CRI90+ LED Strip Light
To surpass industry standards, we made the brightest LED strip light on the market. Our upgraded UltraBright™ Industrial Series is now available in CRI90+ version. Continuing to redefine and push the limits of LED strip lighting, both versions emit a staggeringly high output close to 1,000 lm/ft and an impressive color rendering index. These lights are made with innovative 2835 SMD chips that are brighter, smaller, and much more efficient than other chips. The features of each strip cater to our high-end clients for specific project needs. Whether you prioritize brightness over all else or prefer a balance between output and CRI, there’s a perfect choice waiting for you to make.
Top Features and Benefits:
Applications and Use:
These strips are installed in a wide variety of applications including:
-
• High brightness lighting
-
• High-output custom lighting fixtures
-
• Manufacturing areas
-
• Signage and advertising
-
• Exteriors (protected from elements)
-
• Horticulture and botany
-
• OEM applications
-
• Indirect cove lighting
-
• Edge lighting
Brightness Level
Check out our White Output LED Strips Page to compare the output levels of our Static White Strips.
At 1019 lumens per foot, this extremely high-output strip is perfect for commercial and industrial applications.
Available Colors (CCTs):
Why choose Industrial™ Series CRI90+ ?
This highly-anticipated upgrade of our brightest LED strip light is made to satisfy our industrial clients. Now available in CRI90+, these strips are capable of such intense brightness levels because of new, innovative technology paired with sophisticated manufacturing.
Because of its high CRI, this strip is able to comply with Title 24 JA8. For CCTs up to 4000K. The Industrial Series CRI90+ meets the gold standard for light quality and energy-efficiency wherever you choose to install. The high CRI, TLCI and R9 values promises exceptional color accuracy and rendering for your visually aesthetic needs.
*Title 24 is regulated for lamps with color temperatures 4000K and below
Examples of what the Industrial™ Series can do to your space
Office Lighting
High Brightness Commercial Lighting
Ceiling Lighting
Display and Showcase Lighting
Specifications:
-
✔ Extremely high output up to 1019 lm/ft
-
✔ High CRI up to 94
-
✔ TLCI up to 96
-
✔ R9 values up to 83 and R13 values up to 97
-
✔ 6.6 Watts/ft
-
✔ 50,000-hour lifespan (8 hours/day for 17 years)
-
✔ Available in 24V
-
✔ Max run length in series: 19'8" (24V)
-
✔ LED type: SMD 2835
-
✔ 24V can be cut every 2 5/8" (66 mm)
-
✔ Short LED pitch 5/16" (8 mm)
-
✔ 36 LEDs/ft (120 LEDs/m)
-
✔ Single-bin selection (3-step MacAdam)
-
✔ 3M VHB 4930 adhesive
-
✔ 120° beam angle
-
✔ Width: 3/8" (10 mm)
-
✔ Height: 1/16" (2 mm)
-
✔ Double-layer 4oz pure copper PCB
-
✔ Ambient temperature: -4ºF to 113ºF (-20ºC to 45ºC)
-
✔ Operating temperature: -4ºF to 149ºF (-20ºCto 65ºC)
-
✔ UL Listed (cULus) E362522
| Product SKU | Color CCT | Lumen / Foot (Meter) |
Luminous Efficacy (Lumen / Watt) |
CRI | Gamut Score Rg |
Relative Fidelity Score Rf |
TLCI |
| UB-IS-30K90C | 3000K | 930 lm/ft (3051 lm/m) | 135 | 93 | 100 | 92 | 93 |
| UB-IS-35K90C | 3500K | 1019 lm/ft (3344 lm/m) | 147 | 94 | 99 | 90 | 95 |
| UB-IS-40K90C | 4000K | 1007 lm/ft (3305 lm/m) | 144 | 94 | 98 | 89 | 95 |
| UB-IS-50K90C | 5000K | 1002 lm/ft (3288 lm/m) | 144 | 94 | 97 | 87 | 96 |
| UB-IS-62K90C | 6200K | 991 lm/ft (3251 lm/m) | 144 | 94 | 98 | 88 | 95 |
Certifications:
Aluminum Channels
Compatible Aluminum Mounting Channels
Dimmers and Home Automation
Compatible Dimmers and Controllers
Connectors
Power Supplies
Non Dimmable Drivers
Flexfire LEDs® Plug-in Power Supply
Mean Well™ HLG and LPV Hardwired Power Supplies
Dimmable Drivers
Zurik® Universal Dimmable Driver
Zurik® EMLV Dimmable LED Driver
Lutron Hi-Lume Dimmable Driver
UltraBright™ Industrial Series CRI90+ LED strip light FAQ:
Q: Which power supply do I need for my (x) feet of LEDs?
The length of LED strip lights of your project will determine the size of the power supply you need. View our Power Supply chart to find the exact LED power supply you need.
Q:What is CRI and TLCI and why should I care?
Color rendering index (CRI) measures how colors are correctly rendered under a light source in comparison to natural sunlight. The index is measured on a 0-100 scale with 100 being a perfect rating of color accuracy, meaning the colors appear as they naturally would under unadulterated daylight. The bottom line: the higher the CRI, the higher quality is the light source.
95 - 100 → Phenomenal color rendering. Colors appear as they should, subtle tones pop out and are accented. All skin tones look beautiful and art comes alive as backsplashes and paint show their beautiful, full saturation.
90 - 95 → Great color rendering! Colors pop out, look vibrant and are easily distinguishable. Noticeably great lighting starts at a CRI of 90.
80 - 90 → Good color rendering. Though most colors will render well, you may not see items as fully saturated as you would like, but most people will not notice.
60 - 75 → Poor color rendering. Items and colors look desaturated, dull, toneless, and at times unidentifiable (cannot see the difference between black and navy-colored socks).
Q: What is the product warranty?
Because of our unyielding confidence in the quality of our product, we offer a 7-year warranty on our UltraBright™ Industrial Series LED strip lights. For more info, please read our warranty policy.
Q: What is color temperature (CCT)?
The color of light can be quantified by referring to its color temperature. White light is measured in Kelvins (K). Most white lights fall in a spectrum between 1800K and 6200K. When dropping below 3000K, the light becomes noticeably warmer. On the other end of the spectrum, the lights become cooler and emit a blue-ish tint as they rise above 6500K.
It is important that you choose a color temperature that compliments the style, mood, or intention of your space. We recommend using warmer tones for accent or ambient lighting while using cooler tones in high-traffic, industrial or task-specific areas. Speak to one of our lighting experts if you need guidance.
Q:What is the lifespan of your strip lights?
Our lights have been rigorously tested and have an expected lifespan of 50,000 hours before dropping to 70% luminosity. This means that if you were to use your lights 12 hours a day, every day, the lights would be expected to last longer than 10 years. Even after that time has elapsed, the lights will maintain a brightness of 70%. Higher-output strips require a heat sink to reach the expected lifespan and beyond.
Q: What are lumens (lm)?
This is a quantifiable amount of light produced by an LED strip or other light-producing product, as seen by the human eye. In other words, this is one way we can measure how much light is produced. When comparing LED strip lights, you want to compare the lumen output as well as the CRI, watts/foot, warranty, and bin selection.
Q: Is there an outdoor option?
No, we do not have an outdoor version of the UltraBright™ Industrial Series. However, we have many other high-quality outdoor IP65-rated LED strip lights you can choose from.
Q: What is the maximum run length of the UltraBright™Industrial Series lights before voltage drop?
We have engineered this strip for a long run length in relevance to the extremely high output. The maximum continuous line of lighting in series is 19’8”. Longer connections are possible in parallel with the correct power unit.
Q. What do I need to turn on my lights?
As these lights operate on low voltage, you first need to purchase a 24V power supply. The type of power supply may vary, depending on if you want to be able to control or dim your lights with a dimming system. We recommend using our solderless grip connectors to make connections after cutting the strip to length if needed. If you are familiar with soldering, you can go ahead and do so to make more permanent connections, but please test your expertise on a small segment of strip before committing to solder your entire project.
Q: How do I mount the lights?
The 3M double sided adhesive that is found on the back of the LED strip allows you to install them in most locations. Be sure to thoroughly clean the surface to remove all dust and particulate matter before mounting the strip. Certain surfaces may require you to take additional measures to secure the strips lights into place. Feel free to call us with any questions.
Q: Can I cut the strips myself?
Yes, our LED strip lights are made to be cut to your desired length. Using sharp scissors, you can cut this strip every 2 5/8”. You’ll see the cut marks printed on the surface of the strip.
Q: What is a 2835 SMD LED chip?
Made with newer technology, 2835 SMD (Surface Mounted Diode) chips are more efficient and can be much brighter than other SMD chips. The number 2835 refers to the size of the chips, which measures at 2.8mm x 3.5mm. This compact size makes for exceptional discreet lighting. Click here for more information on LED chip sizes.
Q: What is the importance of UL Listed?
The Underwriters Laboratories (UL) are an independent, not-for-profit organization that focuses on evaluating products for safety certification. This means you can use and install these LEDs in commercial spaces, industrial applications and in your home knowing that these are safe products..
Q: What is Title 24 JA8?
Title 24 JA8 is the California Building Standards Code that sets the new standard for energy efficient lighting for residential and commercial buildings. Its purpose is to ensure the state has a healthy, safe and reliable source of energy by reducing energy costs and environmental impacts of energy use. Color temperatures 4000K and below can be used to comply with California Title 24 JA8.
